斐波那契数列相关问题

kio

原文参考
http://www.zhihu.com/question/24470349
http://jsfiddle.net/njed27nf/

kio

1. #coding=utf-8

2. import rhinoscriptsyntax as rs

3. from math import sqrt,pi,cos,sin

4. width = 70

5. height = 70

6. nbr_circles = 250

7. phi = (sqrt(5) + 1) / 2 - 1 # golden ratio

8. golden_angle = phi * 2 * pi # golden ngle

9.

10. lg_rad = width * .45;

11. lg_area = lg_rad ** 2 * pi

12.

13. sm_area = lg_area / nbr_circles  # Area of our little circles,if they filled the space entirely

14. sm_rad = sqrt(sm_area / pi)  # This is related to the equation area = pi r squared

15. fudge = 0.5  # Fudge factor, since our circles don't actually fill up space entirely.

16. adj_sm_diameter = sm_rad * 2 * fudge

17. cx = width / 2

18. cy = height / 2

19.

20.

21. for i in range(1,nbr_circles):

22.     angle = i * golden_angle

23.     cum_area = i * sm_area

24.     spiral_rad = sqrt(cum_area / pi)

25.     x = cx + cos(angle) * spiral_rad

26.     y = cy + sin(angle) * spiral_rad

27.     #print(x,y)

28.

29.

30.     #rs.AddCircle((x,y,0),1)

31.     rs.AddPoint(x,y,0)

复制代码

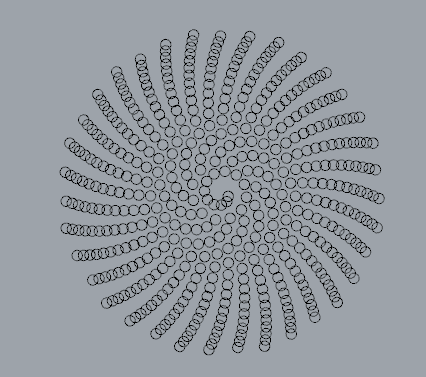

最终完成了.

像番茄加两个蛋

牛逼，我只知道输出不大于1000斐波那契数列，你居然还可以画出来！
